Name: A6-X UAV Modular Propulsion System
Brand: T-MOTOR
SKU: T-MOTOR001447
Price: 117.90 USD
Availability: InStock

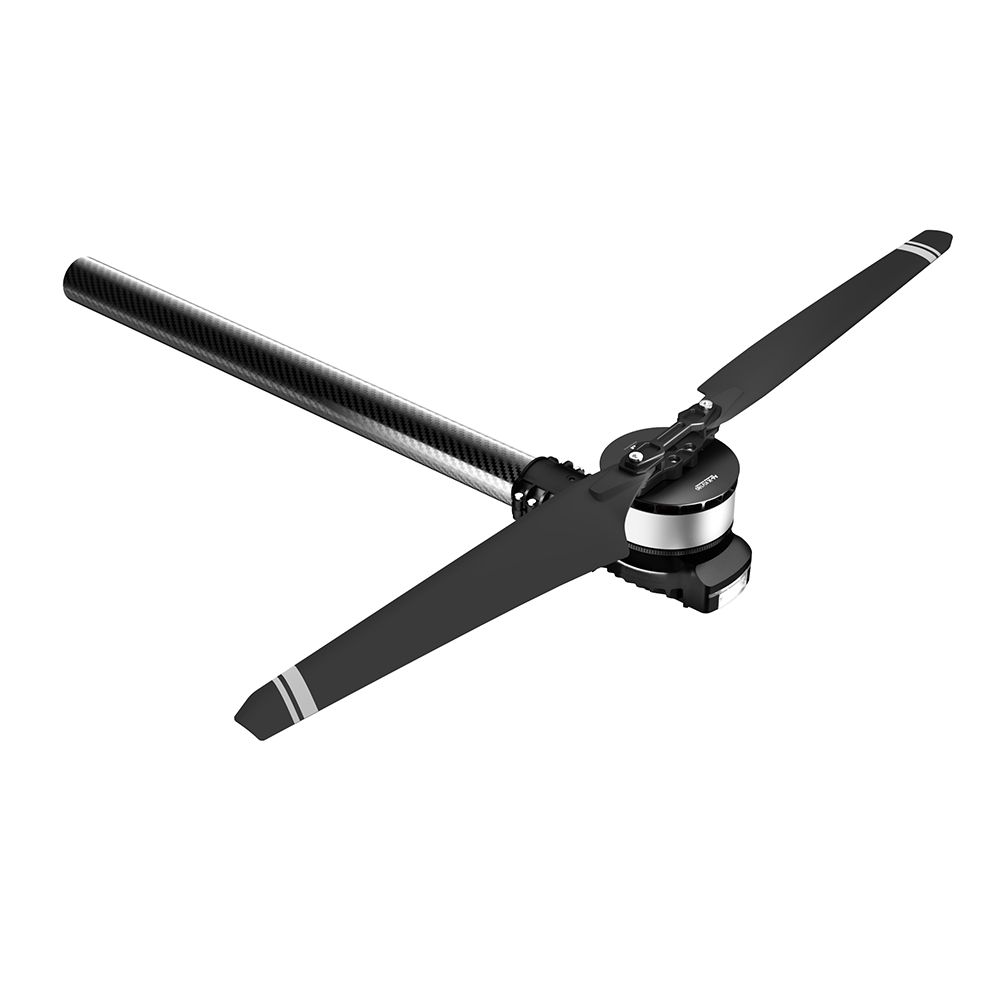

A6-X UAV Modular Propulsion System

$117.90

A6-X MODULAR Propulsion System For 5L quadcopter or 10L hexacopter agricultural drones A6-X

Description

A6-X MODULAR Propulsion System For 5L quadcopter or 10L hexacopter agricultural drones A6-X

Model No.	A6-X KV180	Tube Size	30mm
Setup	A6-X (Motor)+14S FOC 80A (ESC)+ MF2311P (Propellers)	Wire Material, Wire Gauge, Color	Power Wires: 14#AWG Red & Black Signal Wires: 5P Teflon
Recommended Battery	12~14S (LiPo)	Wire Length	1160±10mm
Rated Thrust	3.5~5kg	Weight	680±2%g (Incl. Wires+Prop)
Efficiency At Rated Thrust	7.46g/W (4.2kg)	IP	IPX6
Max Thrust	12kg	Recommended Ambient Temperature	-30~50℃
Motor Specs
Stator Size	62*15mm	KV	180
ESC Specs
Throttle Range	1100~1940us (Fixed)	Max Voltage	61V
Protocol	DRONE CAN, UAV CAN, CUBE CAN	Peak Current (For A Short Time)	80A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO
Prop Specs
Model No.	MF2311P (Polymer Folding)	Length	23 Inch (585mm)

Motor Specs
Stator Size	62*15mm	KV	180

ESC Specs
Throttle Range	1100~1940us (Fixed)	Max Voltage	61V
Protocol	DRONE CAN, UAV CAN, CUBE CAN	Peak Current (For A Short Time)	80A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO

Prop Specs
Model No.	MF2311P (Polymer Folding)	Length	23 Inch (585mm)

Type	Voltage (V)	Throttle (%)	Current (A)	Thrust (gf)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
A6-X KV180 + 14S FOC 50A + MF2311	54V	30	3.47	1871	0.50	2571	71.80	9.98	138 (Ambient Temperature: 30)
35	5.30	2588	0.69	2995	75.43	9.02
40	7.65	3381	0.90	3409	77.60	8.17
45	10.57	4268	1.13	3813	78.88	7.46
50	14.07	5264	1.38	4201	79.75	6.92
55	18.16	6257	1.63	4596	79.82	6.37
60	22.78	7260	1.90	4937	79.66	5.89
65	27.90	8291	2.17	5280	79.45	5.49
70	33.44	9330	2.43	5602	78.77	5.16
75	39.26	10307	2.68	5906	78.02	4.85
80	45.42	11260	2.91	6186	76.74	4.58
85	50.97	12048	3.11	6410	75.75	4.37
90	52.39	12192	3.15	6463	75.23	4.30
95	52.47	12193	3.15	6464	75.11	4.30
100	52.52	12195	3.14	6465	74.80	4.29
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)
