Detail Information

About T-MOTOR ALPHA 40A 6S Multi-Rotor UAV FOC ESC

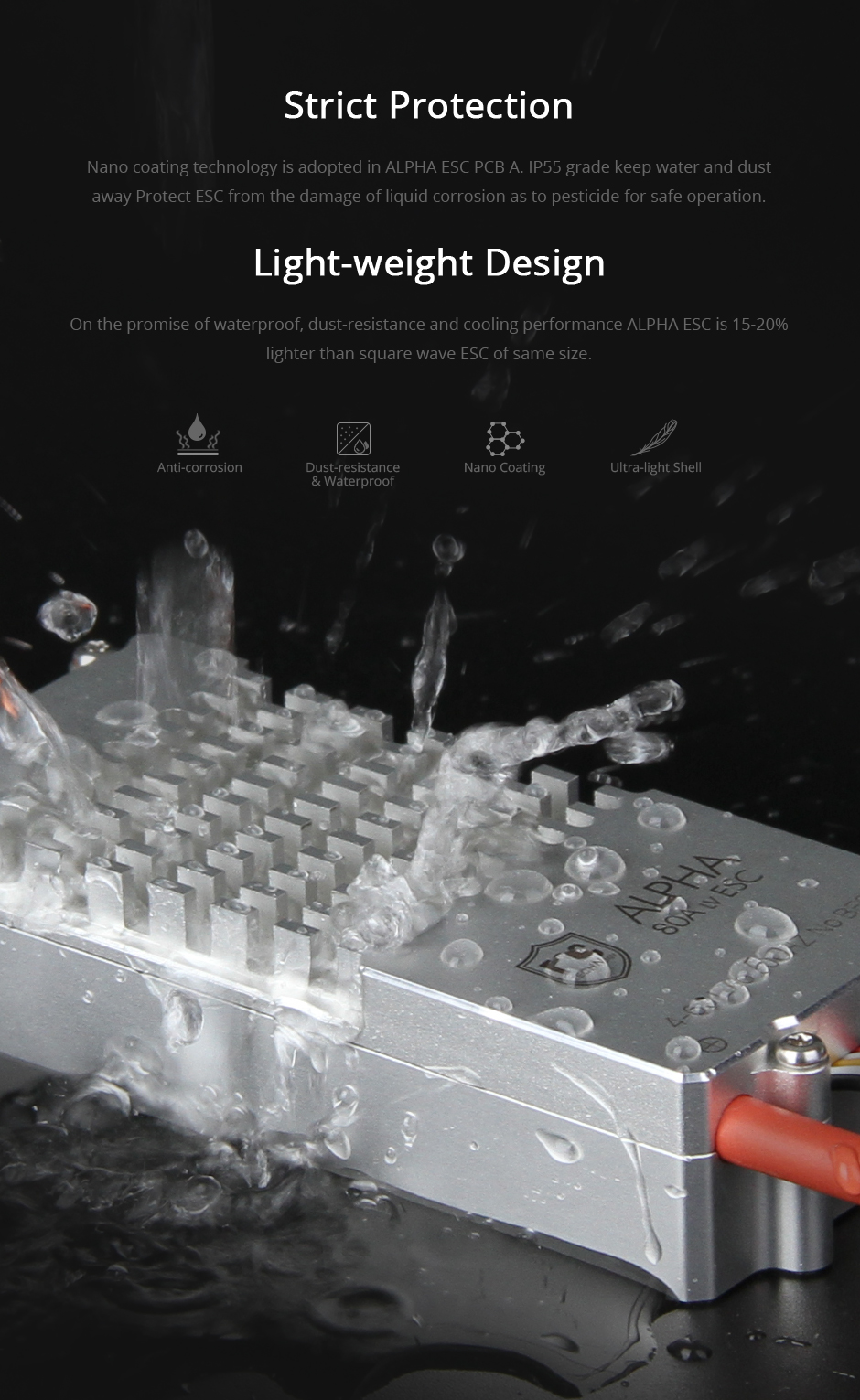

T-MOTOR Alpha 40A 6S ESC delivers precise, efficient motor control with FOC technology. It features low noise, fast response, built-in protections, and IP55 water and dust resistance, making it ideal for professional UAVs

ALPHA 40A 6S ESC Highlights:

• Special core program for multi-rotor controller greatly improve throttle response
• Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability
• FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
• FOC ESCs are with output interface of RPM signal and error status signal
• Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
• 30KHz PWM driving frequency
• Online upgrading of ESC firmware is available (Data LINK is needed）

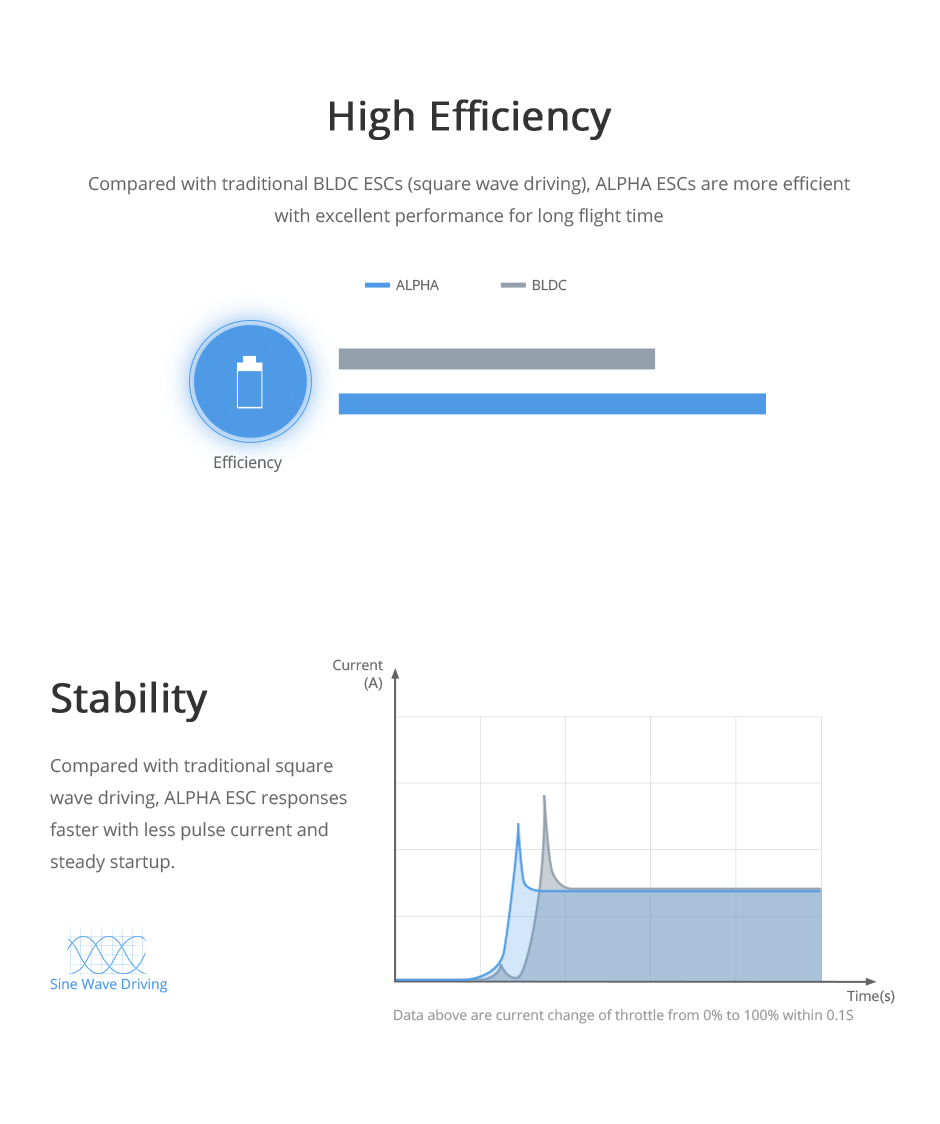

ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.

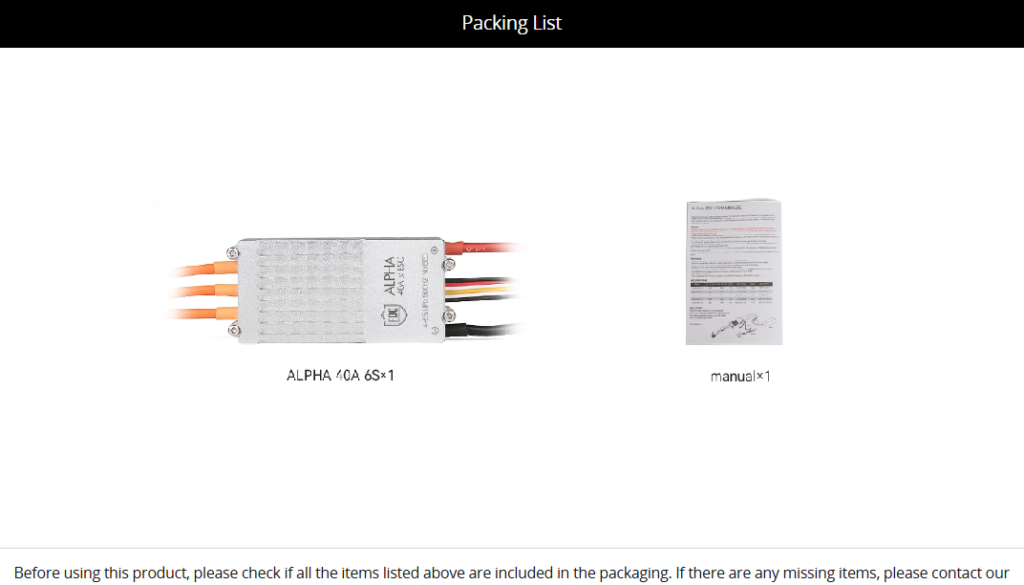

Packing List Includes:

1x T-Motor ALPHA 40A 6S ESC

1x Hardware Kit

Matching Guide:

U3 KV170 Motor / U5 KV400 Motor / MN5212 KV340 Motor / MN4006 KV380 Motor

Alternatively, Alpha ESC can be programmed by the end user with Alpha Data Link.
