AT 195A 6-14S VTOL Fixed Wing Drone ESC

Detail Information

About T-MOTOR AT195A 6-14S VTOL UAV Fixed Wing Drone ESC

The AT195A is a fixed-wing electrical regulator with a switching power supply scheme, supports 6-14S lithium batteries.

The maximum peak current is 240A. It is recommended for VTOL drones with a wingspan of 2.2-4.6 meters. It is recommended for the use of AT 72-80 series motors.

AT195A Highlights:

1.Fixed wing special ESC, continuous current 195A, support 6-14S lithium battery.

2.Multiple protection mechanism, let your flying machine fly safely under multiple protection.

3.Built-in anti-ignition circuit, avoiding invisible plug damage and heat burn.

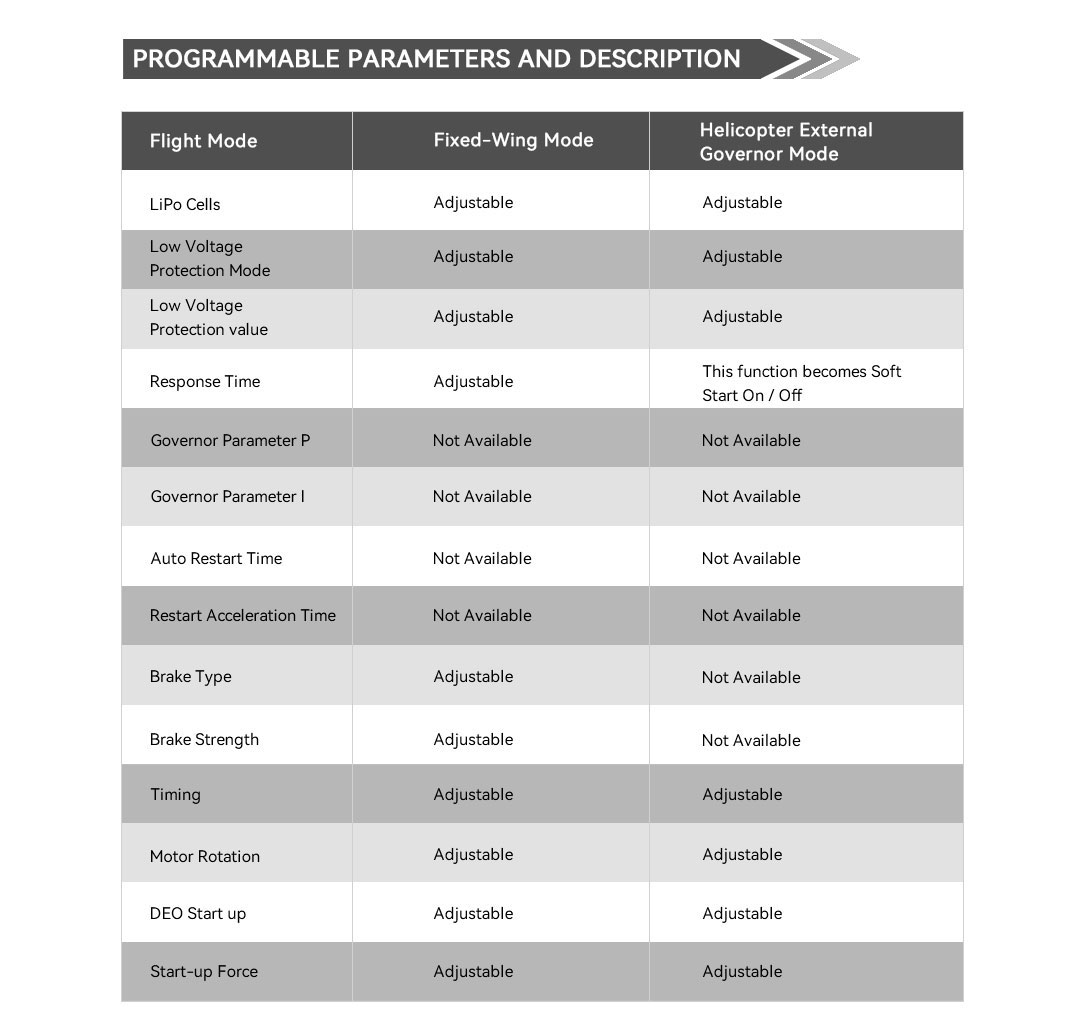

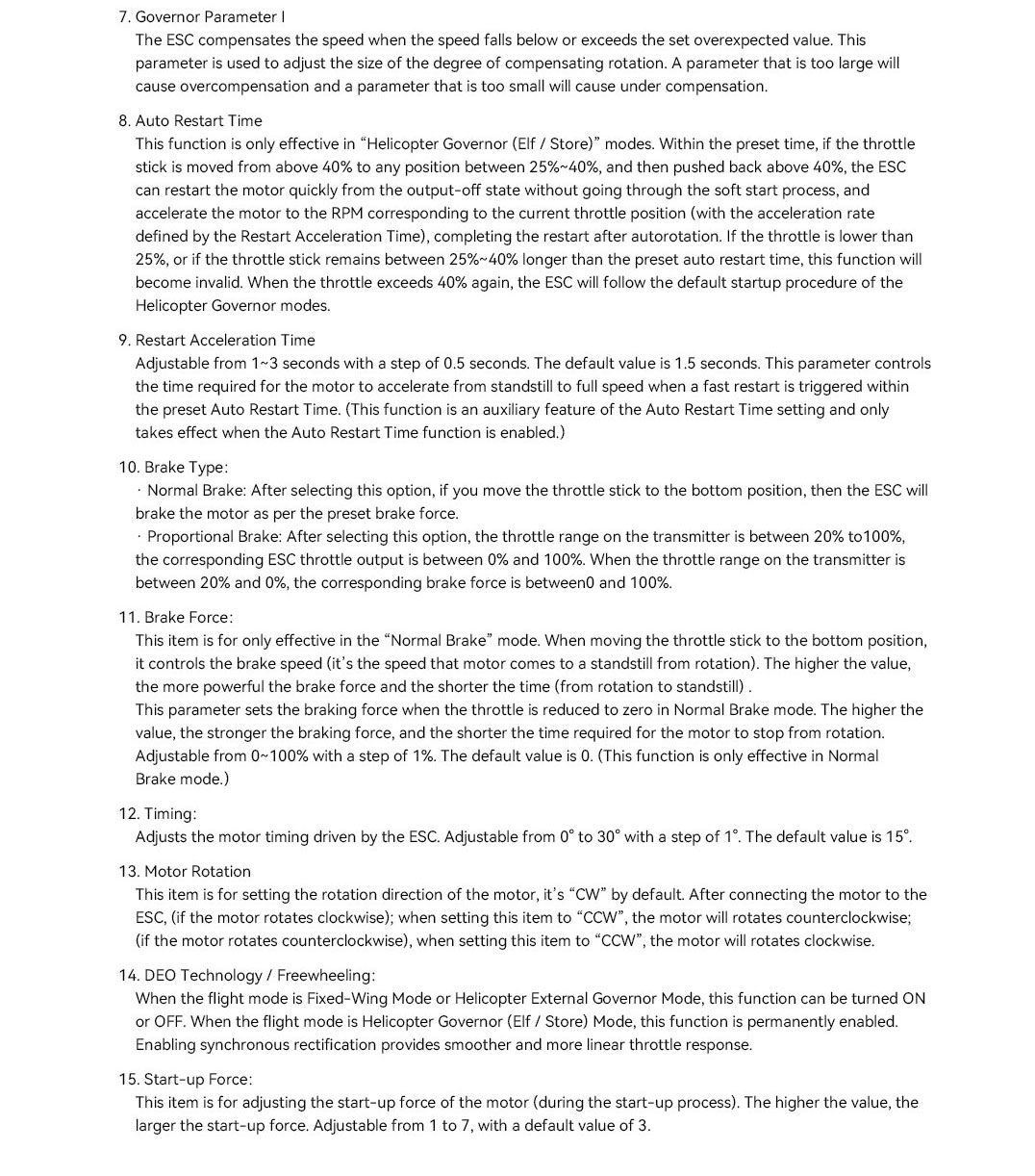

4.Connect with AT DATA LINK for LCD visualization parameter adjustment, automatically read the ESC parameters.

Packing List Includes:

1x T-Motor AT195A ESC

1x Hardware Kit

Matching Guide:

AT 7215 30cc Motor

/

AT7224 40cc Motor

AT

8020 55cc Motor

/

AT8025 70cc Motor
