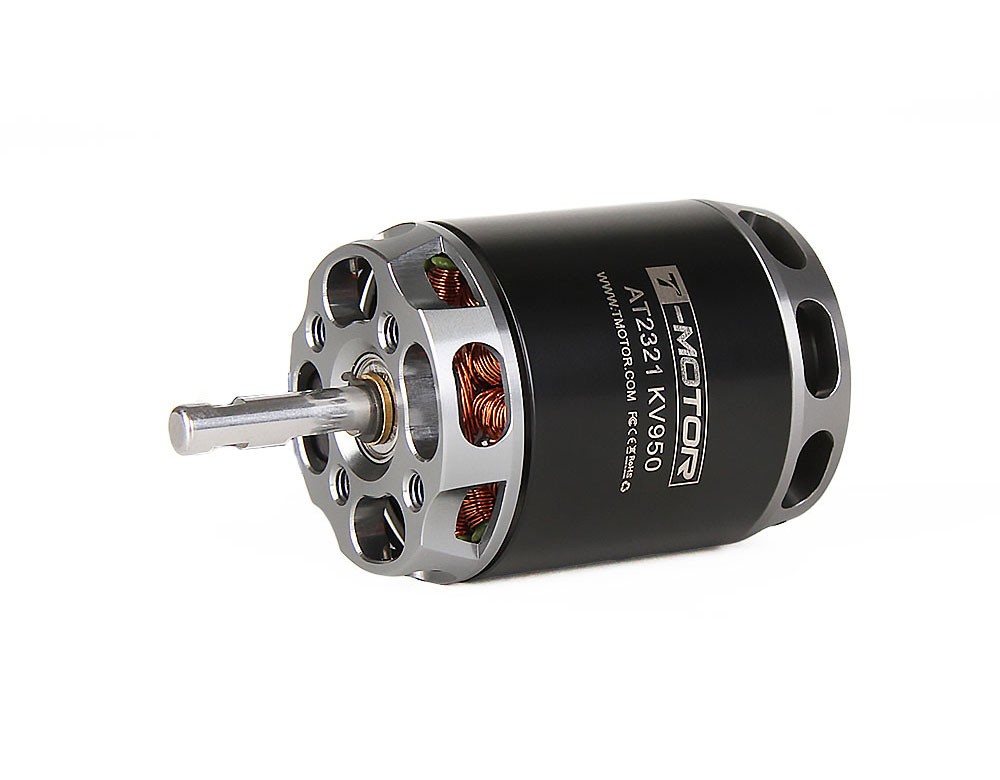

AT2321 Long Shaft 3D Trainer Glider motor KV1250/KV950
$44.99
T-Motor AT2321 is specially designed for 800-2000g flying weight airplane, sailplane and fixed-wing aircraft, biggest thrust 2.1kg.
Description
About T-MOTOR AT2321 UAV Fixed Wing Airplane Long Shaft Brushless Motor
T-Motor AT2321 is specially designed for800-2000g flyingweight airplane ,sailplane and fixed-wing aircraft, biggest thrust 2.1kg.
It can support 2-4s lipos with a maximum power of 800w. Recommend with T-Motor T12*6propeller and T-Motor AT40A/55A ESC
AT2321 Highlights:

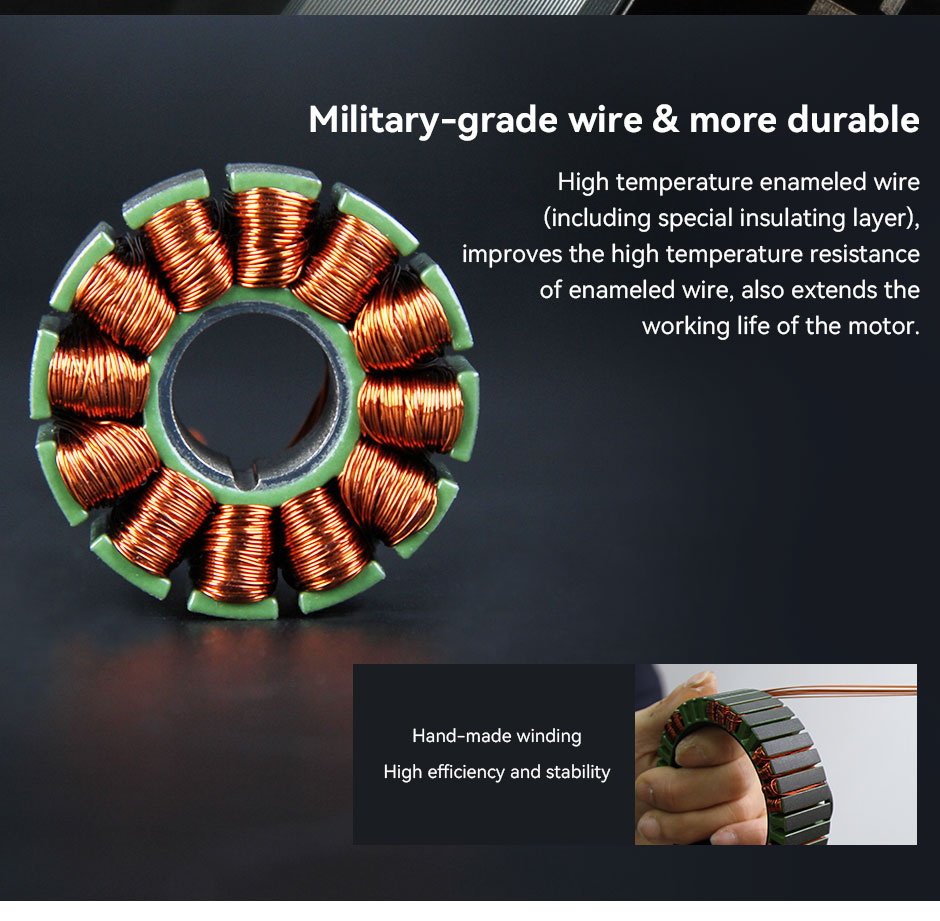

1. High-temperature enameled wire(including special insulating layer)improves the high-temperature resistance of the enameled wire, and also extends the working life of the motor.

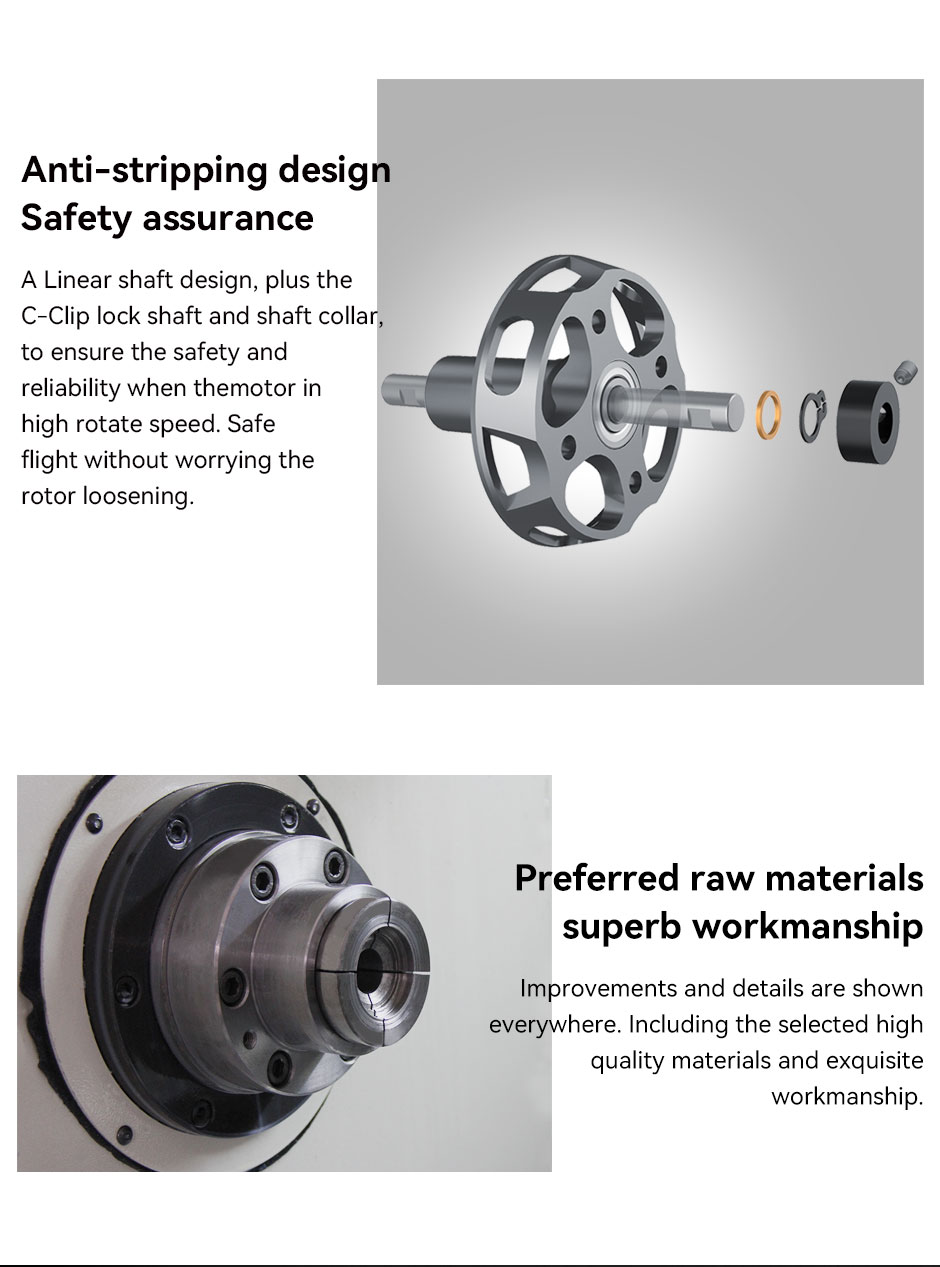

2.A Linear shaft design, plus the C-Cliplock shaft and shaft collar, to ensure safety and reliability when the motor in high rotation speed
3. Hand-made windingHigh efficiency and stability.

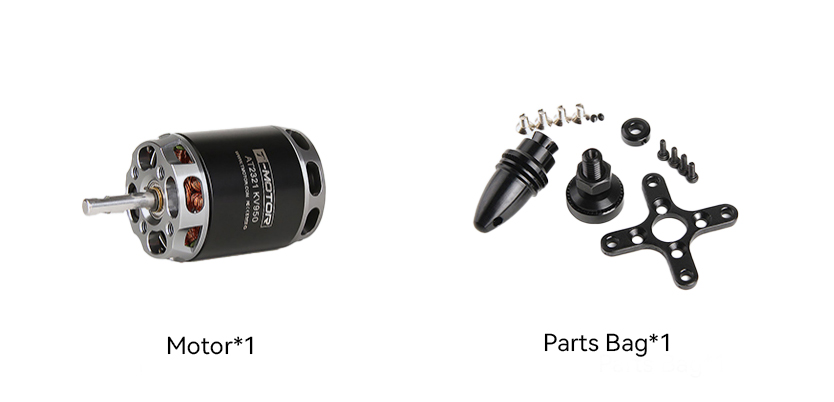

Packing List Includes:
1x T-MOTOR AT2321 Motor

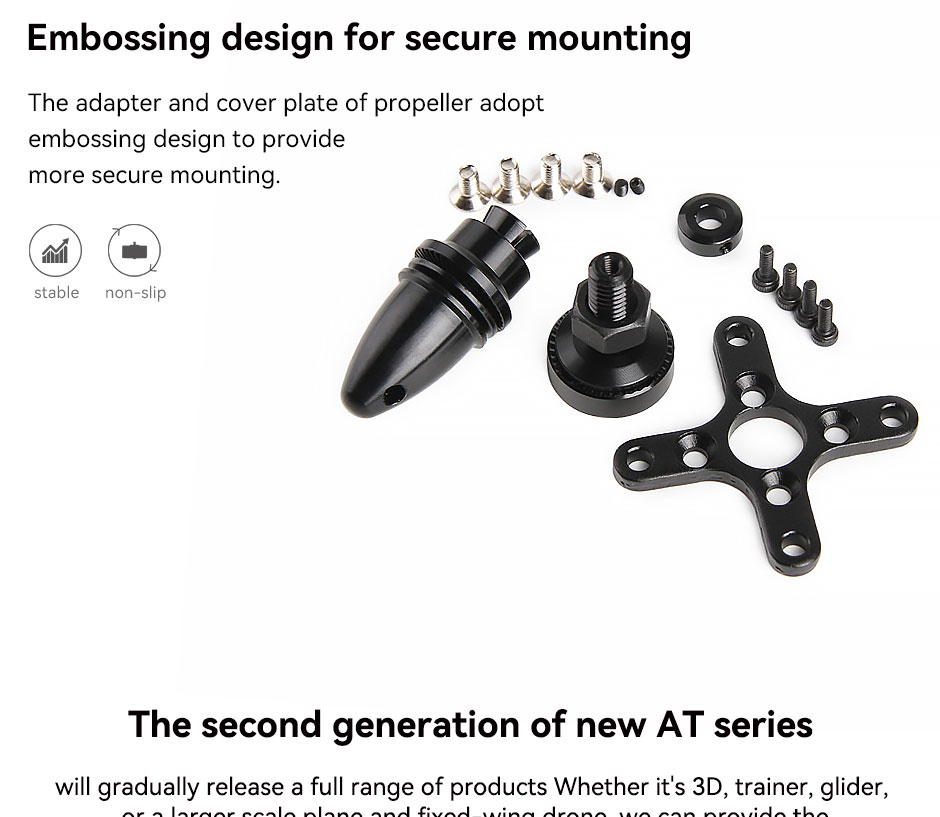

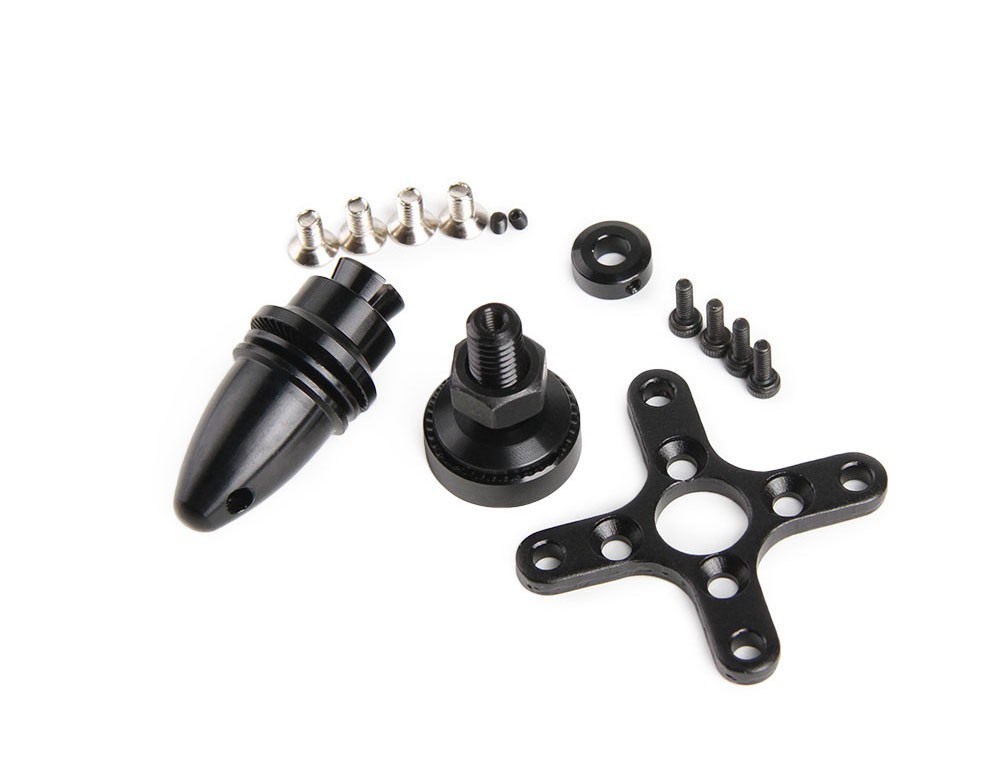

1x Hardware pack
Matching Guide:
Technical Specifications
| Test Item | Long Shaft KV950 | Weight (Incl. Cable) | 93g |

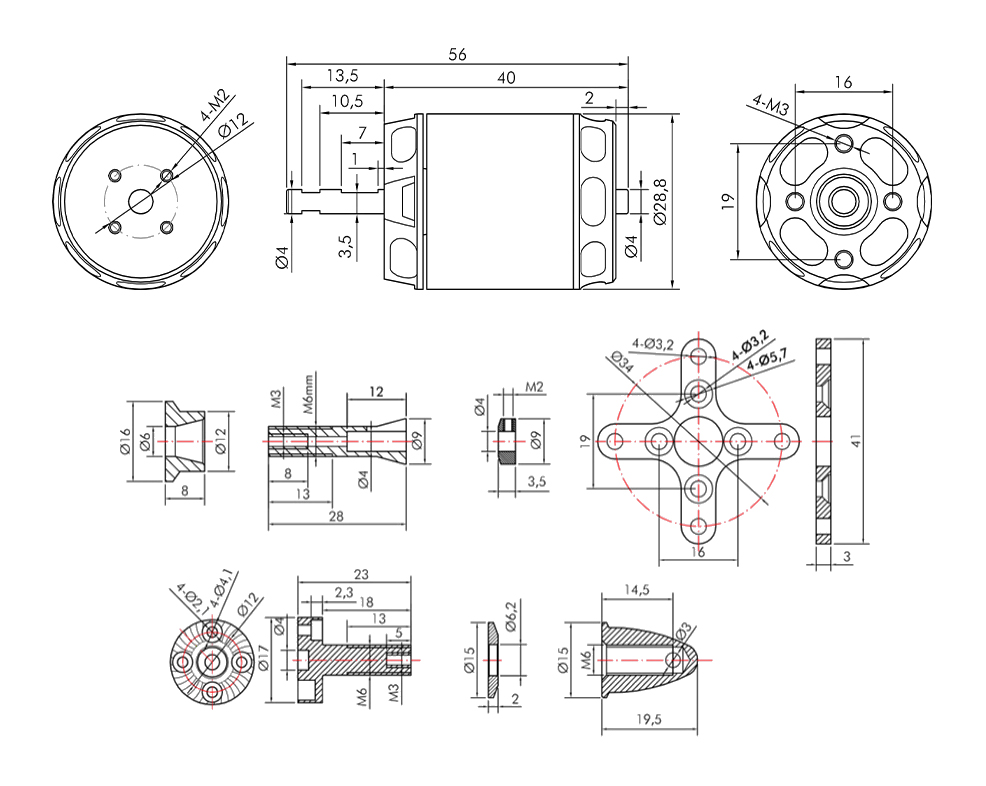

| Motor Dimensions | Φ28.8*56mm | Internal Resistance | 65mΩ |
| Lead | 22#AWG 100mm | Configuration | 12N14P |
| Shaft Diameter | IN：4mm OUT：4mm | Rated Voltage(Lipo) | 2-4S |
| Idle Current(10V) | 1.2A | Peak Current(180s) | 30A |
| Max Power (180S) | 450W | Recommendation | / |
| Test Item | Long Shaft KV1250 | Weight (Incl. Cable) | 94g |
| Motor Dimensions | Φ28.8*56mm | Internal Resistance | 38mΩ |
| Lead | 22#AWG 100mm | Configuration | 12N14P |
| Shaft Diameter | IN：4mm OUT：4mm | Rated Voltage(Lipo) | 2-4S |
| Idle Current(10V) | 1.8A | Peak Current(180s) | 45A |
| Max Power (180S) | 700W | Recommendation | / |

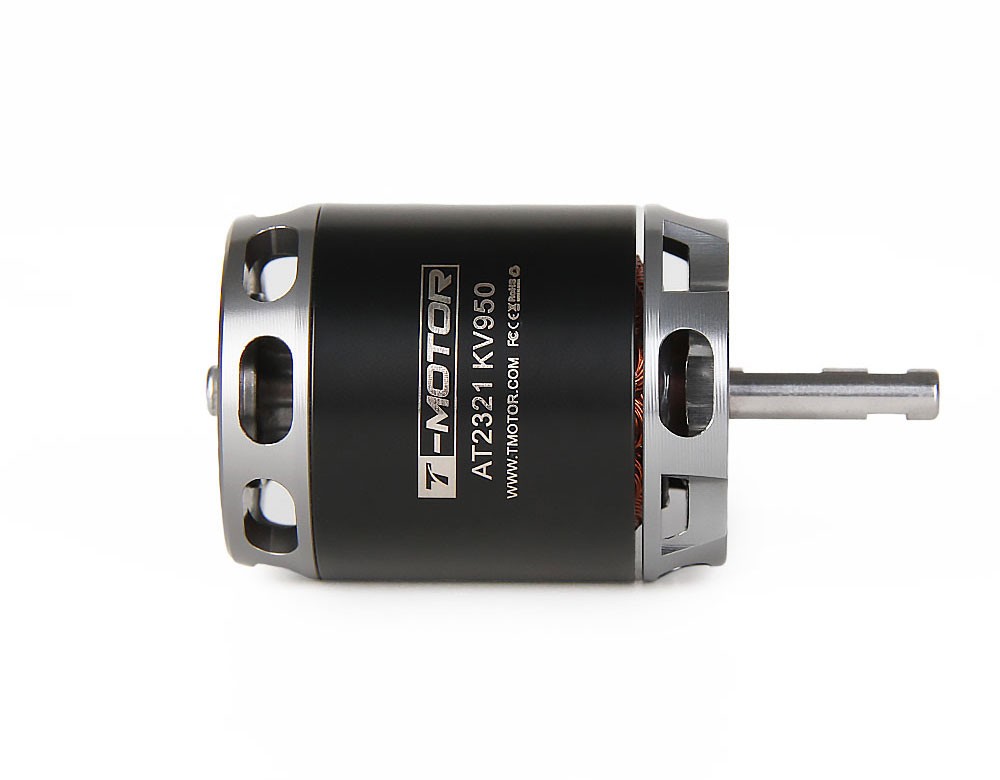

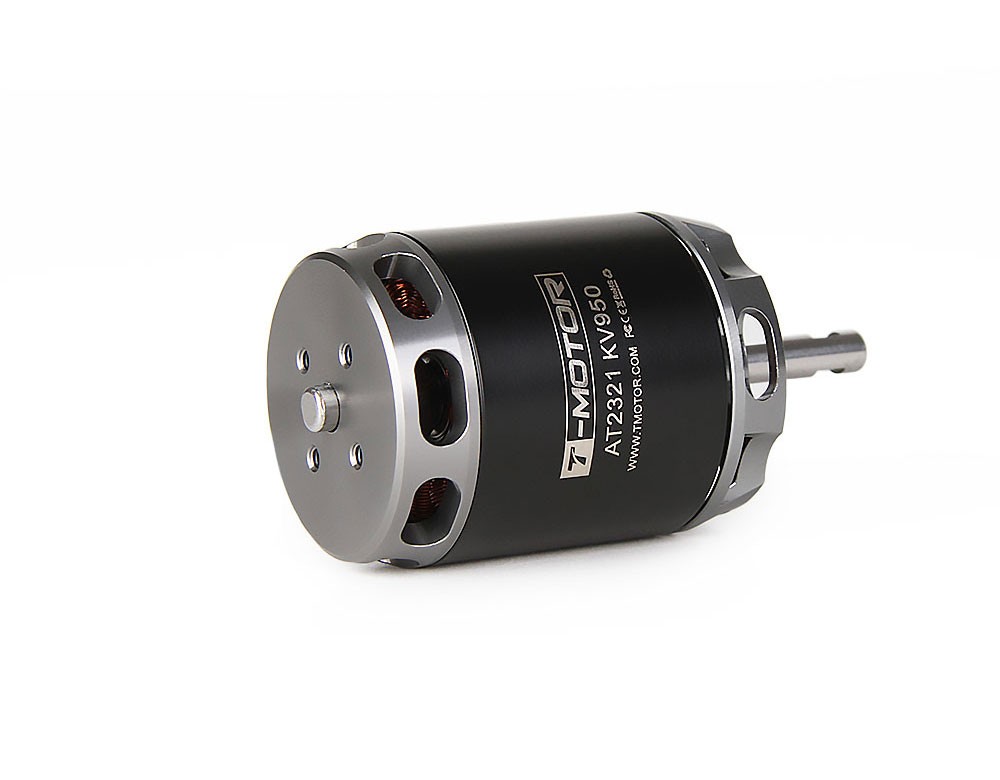

Product Images
