AT2820 Long Shaft Fixed Wing Motor

$399.00

AT2820 Long Shaft Fixed Wing Motor

Add to Wishlist
Add to Wishlist
SKU: T-MOTOR-AT2820 Category: Brand:

Description

About T-MOTOR AT2820 3D F3A Long Shaft Fixed Wing Uav Motor


T-Motor AT2820 is specially designed for1.4-1.6kg flyingweight 3D ,F3A and UAV fixed-wing aircraft, with biggest thrust of 3.1kg.

It can support 3-4s lipos with a maximum power of 1000w. Recommend with T-Motor T12*6/T13*6.5propeller and T-Motor AT55A-75A ESC

AT2820 Highlights:

1. Robust body &release freely

2. Military-grade wire & more durable

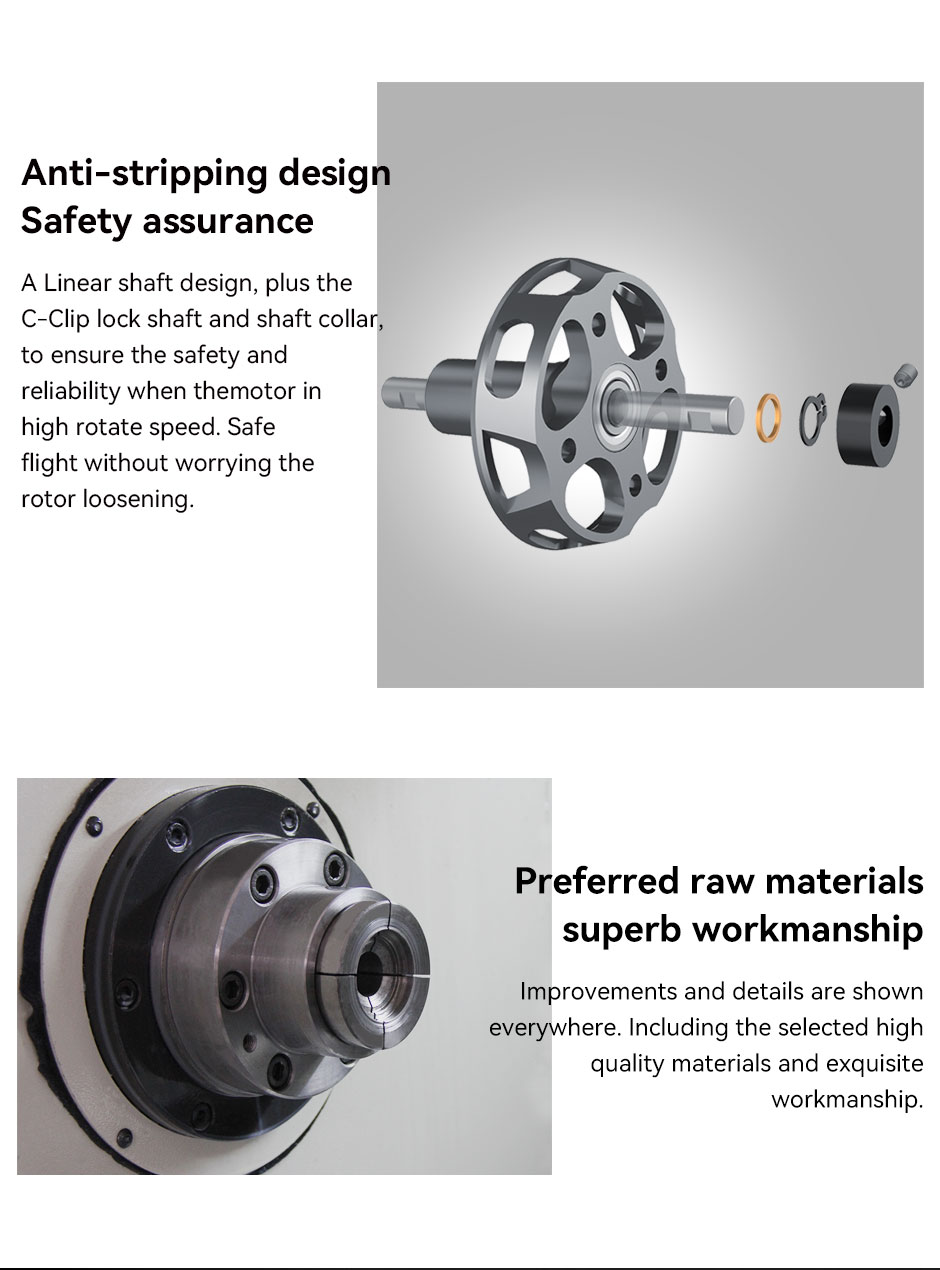

3. Anti-stripping design safety assurance

4. High torque and more durable



Packing List Includes:

1x T-MOTOR AT2820 Motor

1x Hardware pack


Matching Guide:

AT55A ESC / AT75A ESC

T12*6 Propeller / T13*6.5 Propeller


Technical Specifications

Test ItemLong Shaft KV880Weight (Incl. Cable)139g
Motor DimensionsΦ35.2*63.5mmInternal Resistance39mΩ
LeadEnameled Wire100mmConfiguration12N14P
Shaft DiameterIN:5mm
OUT:5mm
Rated Voltage(Lipo)3-4S
Idle Current(10V)1.6APeak Current(180s)45A
Max Power (180S)700WRecommendation/
Test ItemLong Shaft KV1050Weight (Incl. Cable)139g
Motor DimensionsΦ35.2*63.5mmInternal Resistance28mΩ
LeadEnameled Wire100mmConfiguration12N14P
Shaft DiameterIN:5mm
OUT:5mm
Rated Voltage(Lipo)3-4S
Idle Current(10V)2.0APeak Current(180s)65A
Max Power (180S)900WRecommendation/
