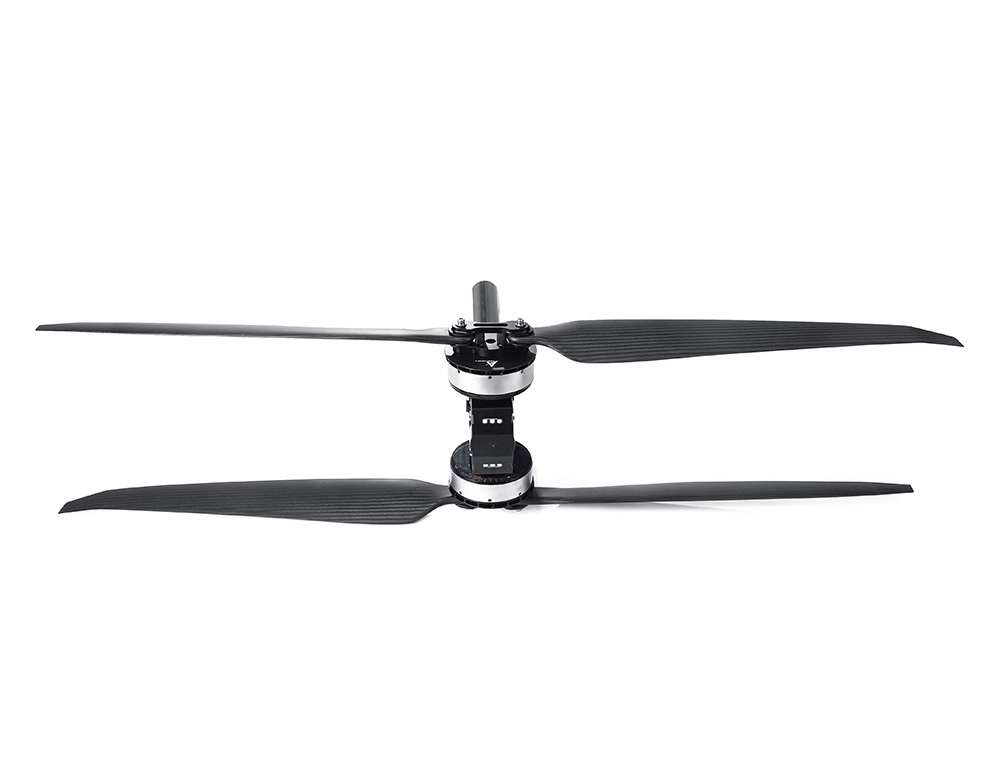

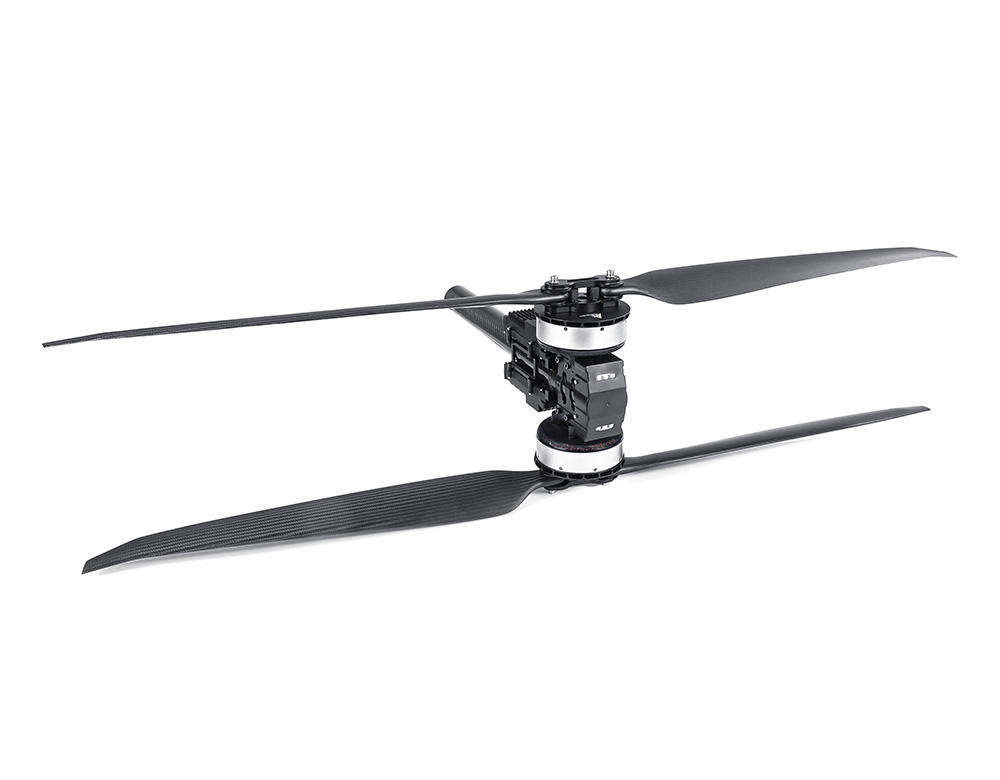

Name: X-A12XL-18S UAV Coaxial Modular Propulsion System
Brand: T-MOTOR
SKU: T-MOTOR001463
Price: 999.90 USD
Availability: InStock

X-A12XL-18S UAV Coaxial Modular Propulsion System

$999.90

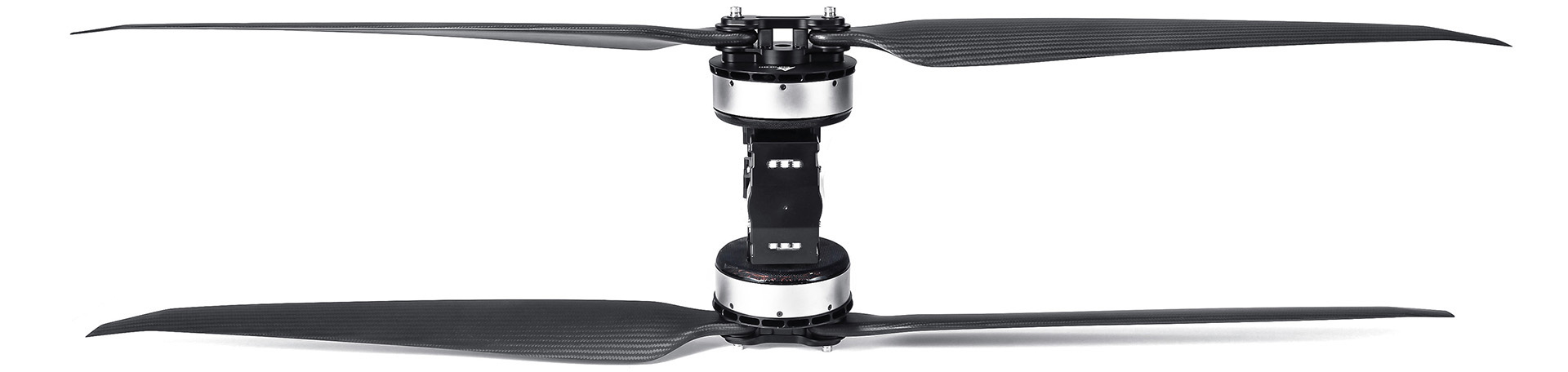

X-A12XL-18S MODULAR Propulsion System X-A12XL-18S

Description

X-A12XL-18S MODULAR Propulsion System X-A12XL-18S

Model No.	X-A12XL KV64	Tube size	50mm
Setup	X-A12XL-18S (Motor)+18S FOC 150A (ESC) +PFZ4918P (Prop)	Wire material, wire gauge, color	Power wires: 10#AWG red & black Signal wires: 5P Teflon
Recommended battery	14~18S (LiPo)	Wire length	1700±5mm
Rated thrust	30~35kg	Weight	5170±2%g (incl. Wires+prop)
Efficiency at rated thrust	8.2g/W (31kg)	IP	IPX6
Max. thrust	73.4kg	Recommended ambient temperature	-20～55℃
Motor specs.
Stator size	111*22mm	KV	64
ESC specs.
Throttle range	1100~1940us	Max. voltage	76V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN	Peak current (for a short time)	150A (Open environment and temperature≤60℃)
Control method	PWM/CAN	BEC	NO
Prop specs
Model No.	PFZ4918P (Carbon Fiber Folding)	Length	49 inch (1244.6mm)

Motor specs.
Stator size	111*22mm	KV	64

ESC specs.
Throttle range	1100~1940us	Max. voltage	76V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN	Peak current (for a short time)	150A (Open environment and temperature≤60℃)
Control method	PWM/CAN	BEC	NO

Prop specs
Model No.	PFZ4918P (Carbon Fiber Folding)	Length	49 inch (1244.6mm)

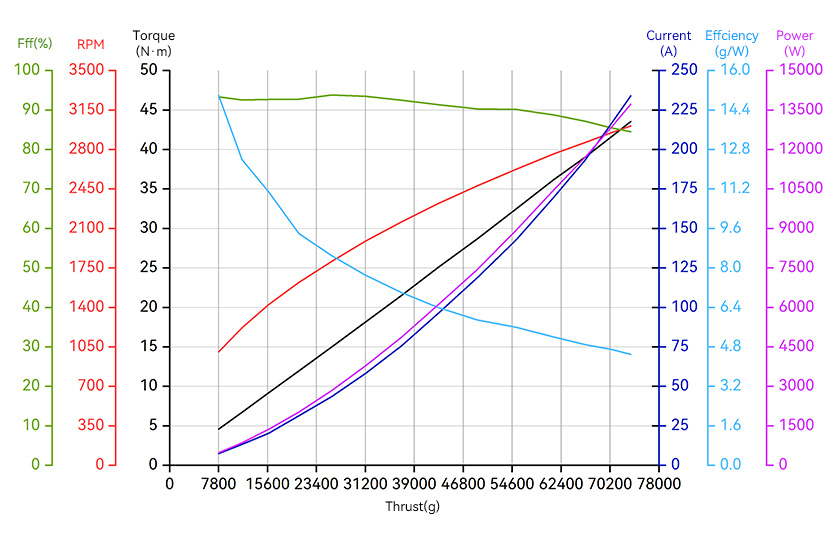

Type	Voltage (V)	Throttle	Current (A)	Thrust (g)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
X-A12XL KV64 + 18S FOC 150A + PFZ4918P	69	30%	7.49	7797	4.60	1007	93.35	15.00	78 (Ambient Temperature: 25)
35%	13.40	11526	6.73	1221	92.61	12.39
40%	20.40	15734	9.20	1424	96.91	11.11
45%	31.54	20599	11.96	1622	92.77	9.41
50%	43.62	25830	15.00	1808	93.82	8.53
55%	58.44	31260	18.20	1990	93.50	7.71
60%	75.92	36964	21.56	2160	92.53	7.02
65%	96.39	42858	25.12	2324	91.40	6.41
70%	118.86	49040	28.70	2478	90.28	5.95
75%	142.81	55214	32.50	2626	90.16	5.57
80%	169.99	61222	36.20	2763	88.78	5.19
85%	193.44	66234	39.04	2864	87.22	4.93
90%	216.37	70356	41.60	2948	85.52	4.69
95%	234.09	73481	43.56	3010	84.50	4.52
100%	233.87	73426	43.52	3010	84.53	4.52
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)
